BROCHUREOVERVIEW

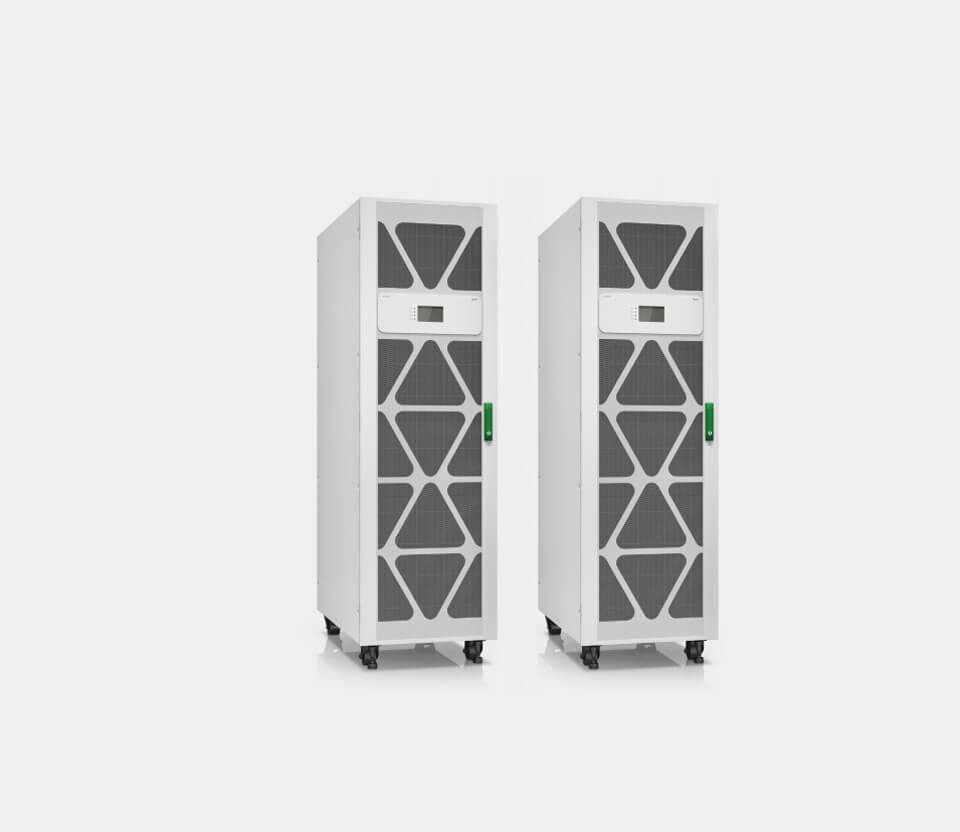

The Schneider Electric Easy UPS 3M is a 60-200kVA 3-phase UPS designed for small and medium data centers and critical business applications. It offers power stability, long-lasting performance, and a compact design. With advanced features, robust specifications, and EcoStruxure readiness, it ensures business continuity with low Total Cost of Ownership. The UPS includes strong overload protection, a wide temperature range, and start-up service for optimised performance and safety.
KEY BENEFITS
- ECO Mode - 99% guaranteed
- Double Conversion mode - up to 95.5% even from a 25% load
- Ensures best performance even in harsh environments
- Common battery bank: Redundant UPS(1+1) can share the same battery bank, reducing battery costs
- Assured robustness against harsh environments
- Conformal coating on PCBA includes replaceable dust filter with 60sec-150 overload and 10min-125 overload with operating temperature up to 40°C
- Front and top access for easy servicing whenever required
- Independent UPS Tuner interface with built-in LCM indication
- High overload capacity - 125% for 10 mins. and 150% for 60 sec.
GMMCO ADVANTAGES
4 hrs Response Time
Dedicated Customer Support
Features
- Three level inverter design with transformer-less topology - UPS performance test without need for a load - >99% input power factor correction and <3% input harmonic reduction - Flexibility for wider application: Breaker box kit and empty battery cubic for long autonomy - SNMP / Modbus TCP/IP / Dry contact for connectivity - Built in input/output/bypass breaker - Less system complexity and CapEx investment for savings on footprint - Parallel UPS' for capacity or redundancy upto 6 UPS' - Capacity bank design of 10 years
3 Phase Easy 3M
- 3 Phase Easy 3M 60 kVA - 3 Phase Easy 3M 80 kVA - 3 Phase Easy 3M 100 kVA - 3 Phase Easy 3M 120 kVA - 3 Phase Easy 3M 160 kVA - 3 Phase Easy 3M 200 kVA
